Cambo Panoramic and Levelling head WRS334

Cambo have introduced a new panoramic and levelling head WRS334 which is compatible with the complete range of Actus technical cameras and WRS cameras with the Arca mount.

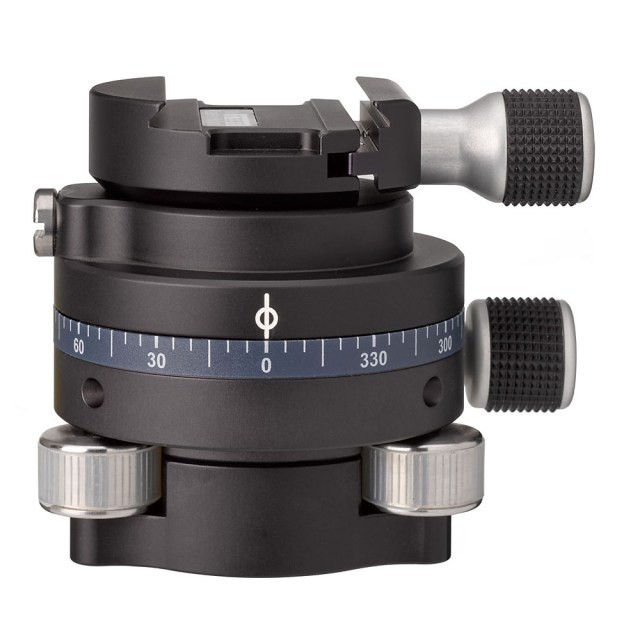

Cambo WRS334 Levelling and Panoramic Head

The WRS-334 features:

Fine-tuned levelling over 3 knobs within 5 degrees in any direction
360 degrees panning of the camera with zero-position click
Full 360 degree scale for indication of panoramic settings
Rotation with click stops at 2, 12 or 16 increments
Includes a camera plate with 1/4″ mount or
Any camera with an ARCA type plate

For any cameras without an Arca mount you can adapt to the WRS-334 using the QR-7 plate which has a 1/4″ whitworth camera thread.

Cambo WRS334 and QR7 Plate

Specifications;

Additional weight 690 gram w/o plate
Additional height: 75mm
Footprint to stand: 54mm diameter
Size: 99x78x87mm incl. plate
Weight 740 gram incl. plate
Rotation 360 degrees with scale indicator
Click stops at each 180, or each 30, or each 22.5 degree

Since introducing the Arca style tripod mount to Cambo camera systems it made sense to add this fitting to the new WRS-334.

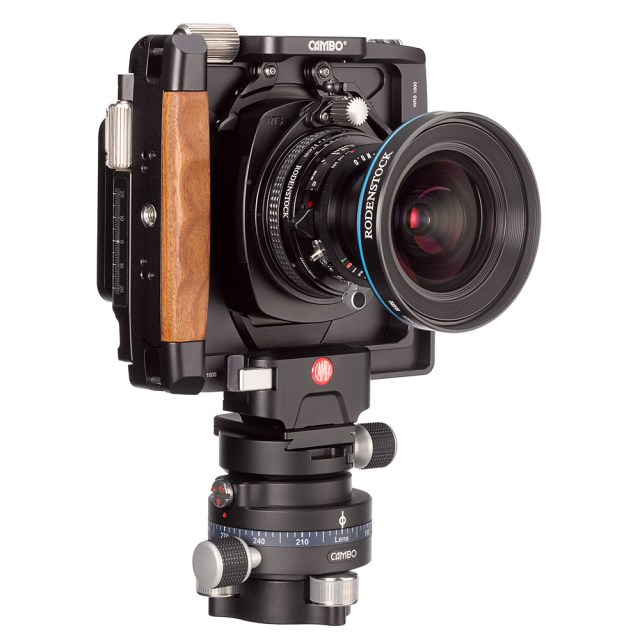

Cambo WRS1600 and WRS334

For photographers that already own a Cambo camera and are looking to add the WRS334 to their kitbag, here is what you will need;

WRS-1600 – ARCA fitting Integrated
WRS-7250 – ARCA fitting Integrated
WRS-1200 Add Cambo ARCA plate WRS-145
WRC-400 Add Cambo ARCA plate WRC-A70
WRS-1250 Add Cambo ARCA plate WRS-145
WRS-5000 Add Cambo ARCA plate WRS-145
WRS-5005 Add Cambo ARCA plate WRS-145

note: All new WRS/WRC models come complete with an Arca dovetail.

Cambo WRS-145

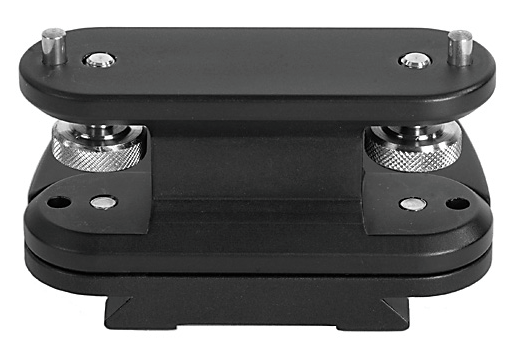

Cambo WRC-A70

Cambo ACTUS cameras have an Arca style rail, all models will fit to the WRS334.

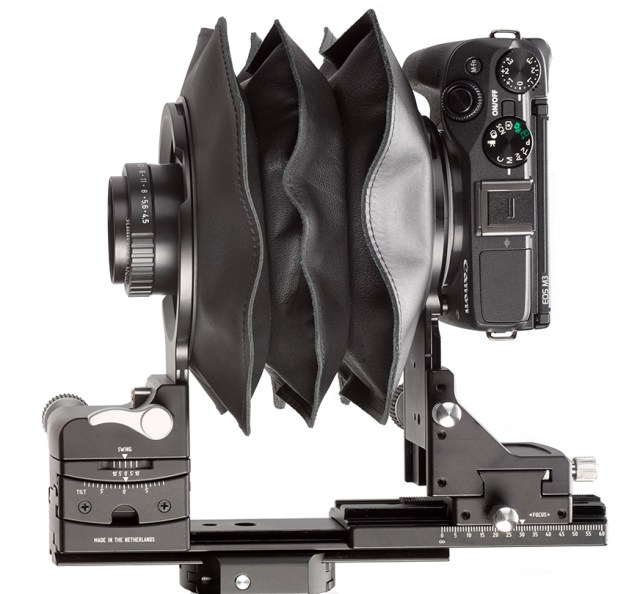

Actus-CanonM3

For camera systems without an Arca mount, there are two options available from Cambo. The QR-7 and QR-XL plate. Both are ideal for Medium format and DSLR camera systems as well as for using on the RPS copy stand system.

Quick Release QR-7

Cambo QR-XL plate

For further advice contact your local Cambo dealer or Cambo Fotografische technical sales. You can also check out the Cambo website.
